性能参数：

打印方式： 行式热敏打印
打印速度 >90mm/s
打印头寿命：100km
分辨率： 203dpi（8dot/mm）
有效打印宽度 ：48mm（384点）
可用纸张宽度： 58±01mm
纸仓容量 直径φ≤50mm
纸张类型 热敏纸
电源(可选）： 可充电锂电池
电池 规格： 锂电：7.4VDC/1500mA
充电方式： 外置充电器 9V/1.5A
语言：支持多国语言

打印参数：支持下载Logo商标打印

字符大小：

          384点/行
　　　　　Font A:12*24点,1.5(宽)*3.0(高)毫米
　　　　　Font B:9*17点,1.1(宽)*2.1(高)毫米
　　　　　简/繁体:24*24点,3.0(宽)*3.0(高)毫米

字符中文：国标一.二级汉字库  24x24点  支持18030大字库，支持台湾，香港繁体

          西文： ANK字符

扩展字符表：OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/

 Greek/Hebrew/East

M747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

命令仿真： 兼容ESC/P0S/STAR 指令集
通信接口： 标配RS232/USB接口，蓝牙4.0/SPP、BLE、SOCket协议或红外/IRCOMM协议可选
驱动程序：Win2000，Win2003，WinXP，WinVista，Win7,Win8,win10,Linux
兼容 ESPON,SAMSUNG
使用环境 -10～50℃(温度)，10～90%（湿度）

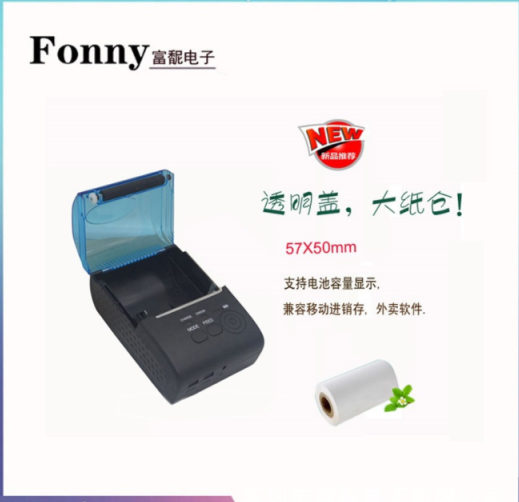

迷你蓝牙打印机是结合USB接口，串口和蓝牙通信接口一起便携式热敏打印机。打印机可以采用车载充电器,可充电电池(根据指定的模式)。这些特殊功能使它成功地应用于多种仪器,手持数据打印

It applies mobile products to supporting the use, and suited to outdoor work environments.

The feature has small size、light weight、reliable performance、simple to connect、easy to use.

Applications:

The mobile police system

The tobacco distribution system

The utility meter reading system

The mobile office / mobile logistics systems

The portable instrumentation

The testing equipment, ancillary equipment.

Low operating costs (no ribbons, ink cartridges)

Weight: about 400g (including accessories:  lithium-ion batteries, cable, test paper)

Chapter 2: Parameter Details

Printing Method: Thermal line printing

Print speed: 90mm/sec

Reliability TPH Life: 100km

Resolution: 203DPI (8dot/mm)

Printing Width: 48mm (384dot)

Paper Width: 58±01mm

Roll Diameter: φ≤50mm

Paper Type: Thermal Paper

Power supply (optional): rechargeable lithium batteries

Battery: Lithium: 7.4VDC/1500mA,

Charging mode: DC 9V/1.5A

Support the battery display function

Print parameters: support to download the Logo trademark

 Character size:

                      The 384 - point/line
                      The Font A: 12 * 24 points, (wide) 1.5 * 1.5 (high) mm
                      The Font B:  9 *17points, 1.1(wide) * 2.1  (high) mm
                     Jane/traditional: 24 * 24 points, (wide) 3.0 * 3.0 (high) mm

Printing Chinese character:     Chinese: simplified Chinese 24x24 point. support 18030 font library, support Taiwan and HK traditional(complex font)

                                                  ANK: ANK characters

Extended character table:

OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

Emulation: ESC/POS/STAR command

Interface: standard RS232/USB, Bluetooth 4.0/SPP、ble、socket t agreement or infrared/IRCOMM agreement (optional).

Drivers: Win9X/Win2000//Win2003/Win Vista/ Win 7/Window XP /win 8/WIN10/WIN11/linux

Compatible with ESPON,SAMSUNG

Working Temperature: -10～50℃

Humidity: 10～90%
